How to solve the ink break of uv printer?

author: Uvink

2022-12-15

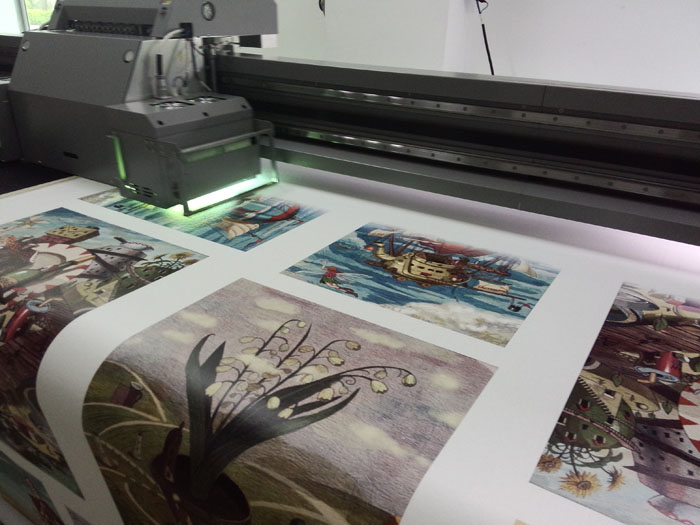

How to solve the ink break of uv printer?In the process of printing pattern operation,

the device appears yin and yang colors, broken lines, lightening colors, ghosting, etc.,

which means that the ink of the nozzle is broken, the device needs to be paused,

reset to X axis, and then handle.

Cause 1: The secondary ink cartridge is faulty. The ventilation port of the secondary ink

cartridge is blocked, and the air can not enter. The internal pressure is too high, and the ink

can not be discharged. If the vent is blocked, you need to reopen the vent to make

the air intake smooth. You can use soft paper to wrap the secondary ink cartridge at

the flat line link for 2 circles to absorb residual ink.

Cause 2: The nozzle is blocked, the nozzle is blocked, and the equipment is suspended.

After resetting to the X-axis origin, the nozzle truck is raised by 20 cm. Press the inking

button, and observe the negative pressure fluctuation value. When it reaches 10, pause.

Observe that the inking droplets are continuous, and then continue printing.

Reason 3: The ink in the ink cartridge is used up or lower than the pressure line, and the ink

in the ink cartridge is used up or lower than the pressure line. You need to open the ink

pipe cover to check whether the ink is used up. When pouring new ink, you need to pour it

slowly under the backlight environment to avoid drying the ink under strong light.
